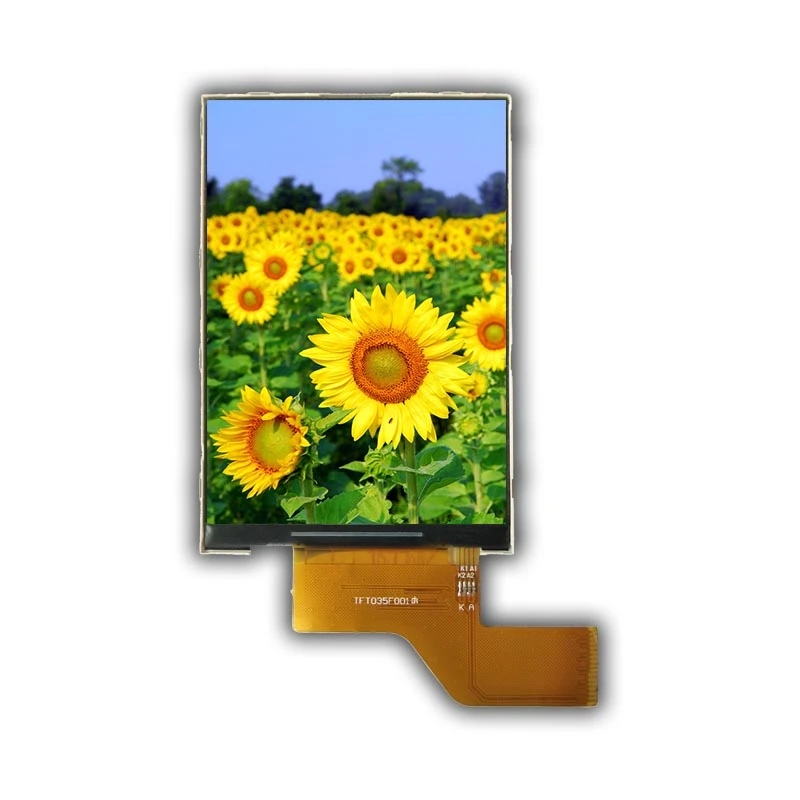

Mipi Interface zaub

Txhawm rau teeb tsa lub vijtsam MIPI, ntxiv rau kev nkag siab txoj hauv kev ua haujlwm ntawm MIPI DSI, peb kuj yuav tsum nkag siab txog cov ntsiab lus ntawm tag nrho MIPI DSI cov duab duab. Peb kuj yuav tsum paub dab tsi yuav tsum tau ua kom pom lub MIPI screen.

1. Ua ntej tshaj plaws ntawm cov khoom siv kho vajtse ntawm MIPI DSI cov duab kos duab

2. Ua tib zoo mloog cov ntaub ntawv tseem ceeb. Lub MIPI DSI pib thiab MIPI tso saib qhov system pib tom qab tau ua nrog lawv ua lub hauv paus, suav nrog kev nthuav tawm ntawm txhua cov ntaub ntawv qauv thiab tsim kev sib txuas ntawm txhua cov ntaub ntawv qauv.

3. Paub txog MIPI DSI software architecture. Hauv DRM-raws li cov duab kos duab, MIPI DSI subsystem yog tsim los ntawm DSI CORE thiab PANEL CORE. Ob leeg muaj kev sib raug zoo hauv kev sib txuas thiab tau sau npe hauv DRM CORE system.

LCD Loj: 4.96 "
Vaj huam sib luag hom: IPS
Kev daws teeb meem: 720xRGBx1280
Zaub hom: Feem ntau Dub
Tus naj npawb ntawm Xim: 16.7M
Saib Kev Qhia: Txhua
NTSC: 72%
Contrast Ratio: 1000
Luminance: TBD cd/m2
Module Loj: 66.40 (H) x 120.05 (V) x 1.67 (D) mm
Vaj Huam Sib Luag Lub Zog: 61.78X109.82 mm
Pixel Pitch: {{0}}.0858x0.0858 mm
Pixel Txheej: RGB-stripe
Luj: TBD g
Tsav IC: GC9702
Tsav IC RAM Loj: RAM tsawg
Lub teeb Source: 12 LED teeb
Interface: MIPI
Ua haujlwm kub: -20 ~ +70 degree
Cia kub: -30 ~ +80 degree
